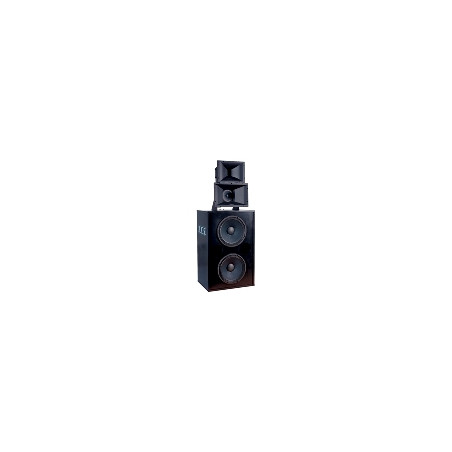

KCS S-7801 3-Vägs Scenhögtalare


Säkerhetspolicy (redigera den med modulen Customer reassurance)


Leveranspolicy (redigera den med modulen Customer reassurance)


Returpolicy (redigera den med modulen Customer reassurance)

KCS S-7801 three-way speaker systems is designed for the screen channel
in large theaters ; its 47 cm depth makes it especially suitable where there
is a space limitation behind the projection screen.

The KCS S-7801 speaker system includes a passive crossover to
cut frequencies between mid and high frequencies.

Between mid and low frequencies, this system is designed to
operate with an external active crossover with cut frequency at 400 Hz.

The high dynamics demanded to screen channel speaker systems by
current soundtracks requires the use of three-way systems in order
to ensure high SPL levels in the auditorium while keeping distortion at
inaudible levels.

Each of the three ways is controlled by transducers which are specifically
designed to operate in the required frequency range and ensure a
precise and distortion-free reproduction.

This system features a bass cabinet with direct radiation technology
fitted with two 15” Ø speakers.

Voice spectrum in this three-way design is reproduced by two 6.5”
cone speakers and 90º x 30º constant dispersion horns, improving
intelligibility of dialogues as compared to conventional two-way
speaker systems.

Its high-frequency section consists of a compression driver with
titanium membrane and a constant directivity horn.

Three-way screen channel cinema sound system for
large capacity theaters


199 mm
630 mm
470 mm
73,8 kg
